Hariom Wood Products a trusted business entity with our operations as manufacture and supplier of an all encompassing assortment of Marine Plywood. The assortment offered by us stands high in terms of quality and in compliance with the industry standards.

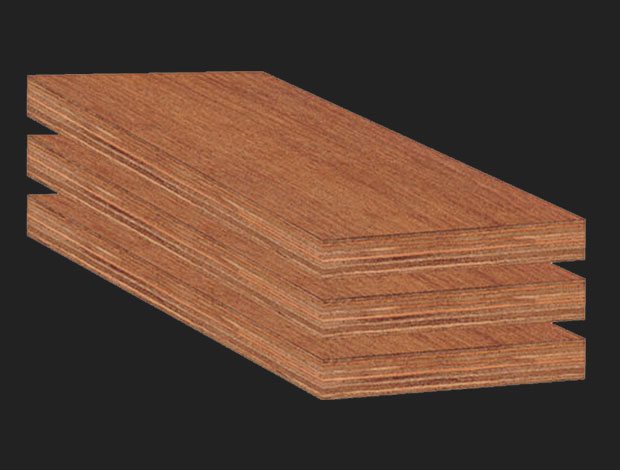

Marine Plywood: A ply bonded with marine grade BWP (Boiling Water Proof) resin that can endure extreme weather conditions and withstand alternate drying and wetting. Silver Touche© Marine Grade Plywood is waterproof and specifically designed for those who want marine ply at an affordable cost. This is the only ply with the unique bonding technology which ensures optimum adhesive strength apart from GLP (Glue Line Positioning) which makes it Borer and Termite proof.
Silver Touche© Marine Plywood is made from selected core veneers & smooth face veneers bonded with Phenol Formaldehyde (ISI Marked) BWP grade conforming to IS: 848-2006 & hot pressed under controlled temperature & high pressure to get bonding. Cutting edge technology & special composing ensures that this Marine Plywood’s are level & uniform. Utmost care is taken to ensure no gaps, overlapping or corrugation which eliminates the chance of opening up of the Marine Plywood when cut. Preservative chemical treatment given to the finished Marine Plywood, which ensures durability & resistance against wood destroying agencies like: borer, termite, fungus.
Silver Touche© Marine Plywood give exceptional strength & durability to your wall cabinets, cupboards, wardrobes & other furniture woodwork. The artisan will find it easy & hassle-free to work since these provide additional grip for screw and nails.
STANDARD SIZES (IN MM)
- 2440X1220, 2440X920
- 2140X1220, 2140X920
- 1840X1220, 1840X920 and as per specific orders.
SALIENT FEATURES
- Accuracy & stability in dimension.
- Boiling water proof (BWP)
- No expand, contract, warping & delamination when subjected to change in atmospheric condition.
- Free from borer, termite & powder.
FACTORY TEST RESULT
| Test Parameter(s) (Clause) | Specified Value/Tolerance | Obtained Result |
|---|---|---|
| Dimension (Clause 6) i) Length ii) Width iii) Thickness a) Less than 6mm b) 6mm and above iv) Edge Straightness v) Squareness | + 6 mm,- 0 mm +3 mm, - 0 mm ±10% ±5% 0.2% 0.2% | +2 mm +2 mm ±4% ±2% 0.1% 0.1% |
| Workmanship and Finish (Clause 7) | Satisfactory | Satisfactory |
| Moisture Content%: (Clause 9.1.1) | 5-15% | 8.20% |
| Glue Adhesion in Dry State (Clause 9.1.2) a) Glue Shear Strength i. Average ii. Minimum Individual b) Adhesion of Plies | 1350 N (Min.) 1100 N (Min.) Shall be minimum Pass Standard | Avg:1980.6 N Min.Ind:1658.2 N Pass Standard |
| Water Resistance Test
( Clause 9.1.3) a) Glue Shear Strength i. Average ii. Minimum Individual b) Adhesion of Plies | 1000 N (Min.) 800 N (Min.) Shall be minimum Pass Standard | Avg:1438.9 N Min Ind.:1252.1 N Pass Standard |
| Tensile Strength (Clause 9.1.4) a) Along the grain direction b) Across the grain direction c) Sum of Tensile Strength (a+b) | 42 N/mm2 (Min.) 25 N/mm2 (Min.) 84.5 N/mm2 (Min.) | 47.8 N/mm2 38.5 N/mm2 86.3 N/mm2 |
| Mycological Test (Clause 9.1.5)
a) Edge of the Specimen b) Glue Shear Strength I. Average II. Min. Individual c) Adhesion of Plies | Shall be no sign of separation 1000 N (Min.) 800 N (Min.) Shall be minimum Pass Standard | 1200 N (Min.) 1000 N (Min.) Pass Standard |
| Static Bending Strength
(Clause 9.1.6) a) Modulus of Elasticity I. Along the gain direction i. Average ii. Min. Individual II. Across the gain direction i. Average ii. Min. Individual b) Modulus of Rupture I. Along the gain direction i. Average ii. Min. Individual II. Across the gain direction i. Average ii. Min. Individual | 7500 N (Min.) 6700 N (Min.) 4000 N (Min.) 3600 N (Min.) 50 N (Min.) 45 N (Min.) 30 N (Min.) 27 N (Min.) | 8659.2 N/mm2 7158.8 N/mm2 5128.9 N/mm2 4735.6 N/mm2 59.2 N/mm2 49.5 N/mm2 42.5 N/mm2 33.2 N/mm2 |
| Wet Bending Strength
(Clause 9.1.7) a) Modulus of Elasticity I. Along the gain direction i. Average ii. Min. Individual II. Across the gain direction i. Average ii. Min. Individual b) Modulus of Rupture I. Along the gain direction i. Average ii. Min. Individual II. Across the gain direction i. Average ii. Min. Individual | 3750 N (Min.) 3400 N (Min.) 2000 N (Min.) 1800 N (Min.) 25 N (Min.) 22 N (Min.) 15 N (Min.) 13 N (Min.) | 5439.6 N/mm2 4723.5 N/mm2 3128.1 N/mm2 2735.9 N/mm2 42.7 N/mm2 29.5 N/mm2 32.6 N/mm2 23.4 N/mm2 |
| Retention of Preservative (Clause 9.1.8) | 12 Kg/m3 (Min.) | 12.86 Kg/ m3 |
